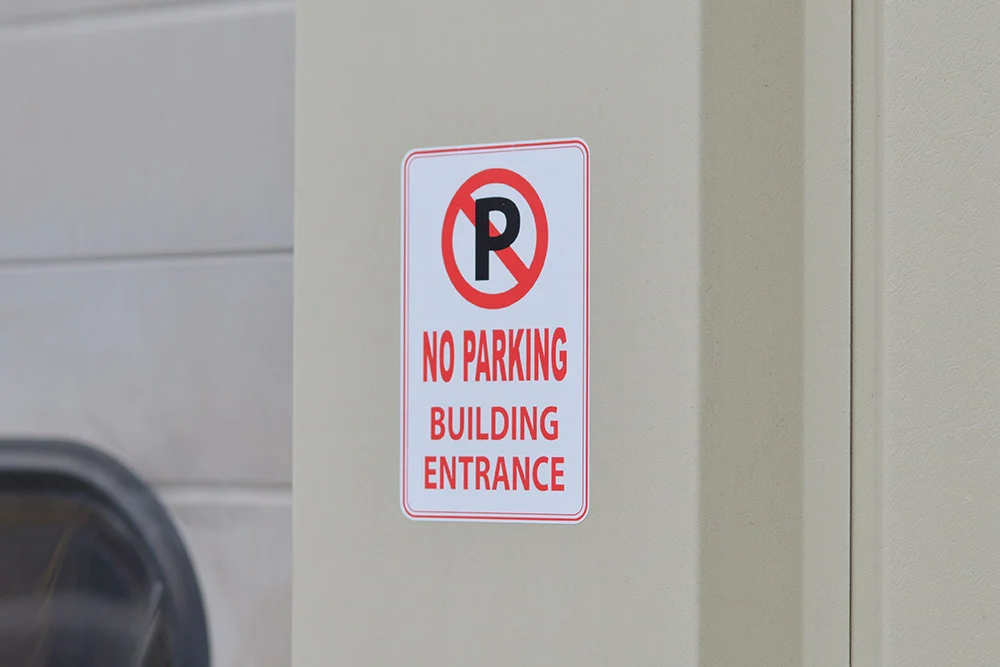

Pre-printed labels available on request
Pre-printed labels available on request
Reliable and versatile

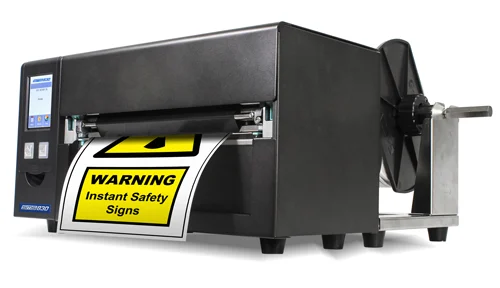

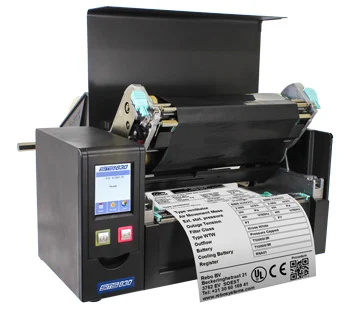

The SMS-830 is built to produce accurate and durable labels time after time. Thanks to its 300DPI print resolution, both small details and large icons are displayed clearly. This is essential for industrial applications where legibility and durability are key. Whether for machine labels, product labels, location marking or safety labels, the SMS-830 guarantees consistency and quality.
Sustainable labels in all shapes and sizes
Thermal transfer printing technology is known for its durability. The labels are restant to wear, chemicalsand extreme temperatures, which ensures long-term readability and reliability.
The SMS-830 therefore has a wide range of printable materials such as permanent or removable vinyl, aluminium coloured polyester, Glow-in-the dark or reflective material and much more. Multi-coloured stickers are easy to make using pre-printed A4 and A5 die-cut labels on a roll.
Flexible connection options
With both USB and network connectivity, the SMS-830 offers maximum flexibility. Simply connect the printer to your computer via a USB cable to print locally or integrate the printer into your corporate network to print with multiple users, from multiple PCs.
Not sure which set-up best suits your situation? We will be happy to give youadvice without obligation.
User-friendly software
The included NiceLabel software makes it easy to design and print labels. With intuitive interface and extensive design options, you can create professional labels quickly and easily. Whether you are an experienced user or new to label printing, our software provides the tools you need to get the most out of your printer.
In addition, we offer various ready-made label templates and for any questions you can always contact our support department!
Required templates for pre-printed labels
Required templates for pre-printed labels
ONE SYSTEM, COUNTLESS APPLICATIONS

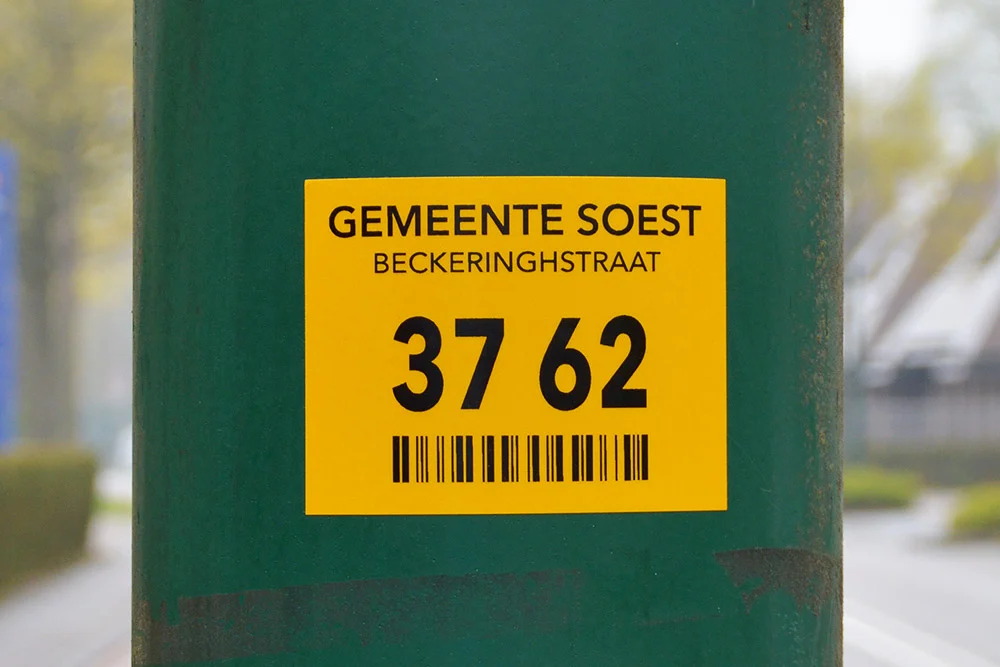

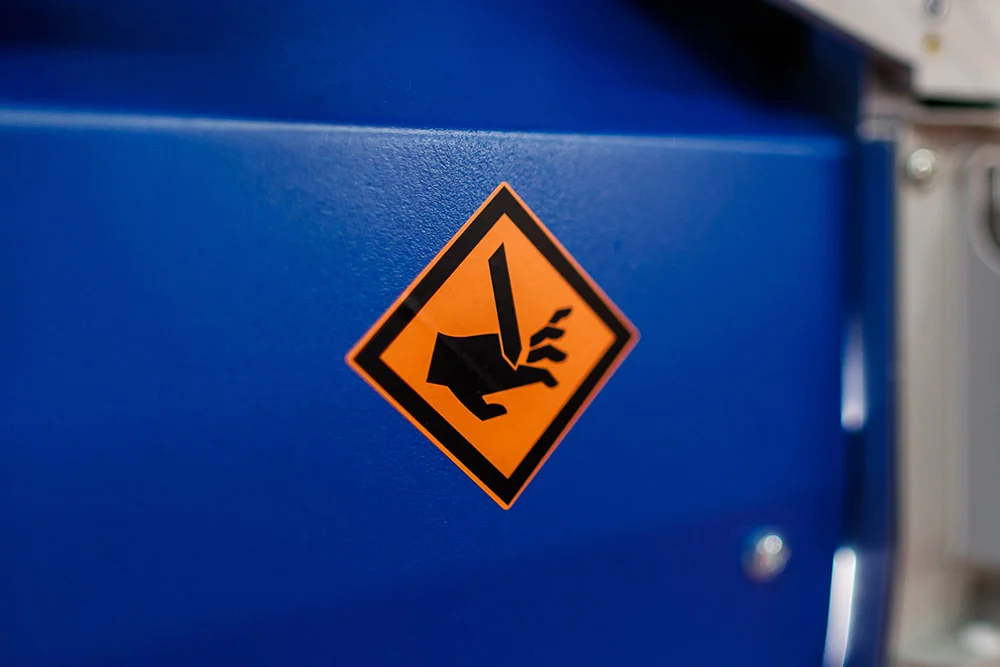

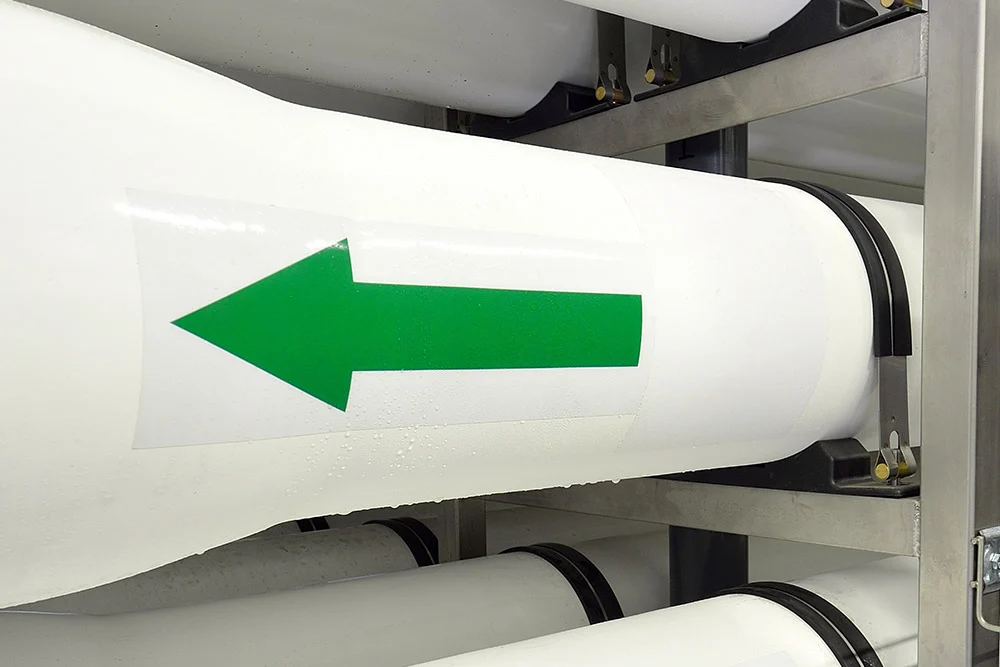

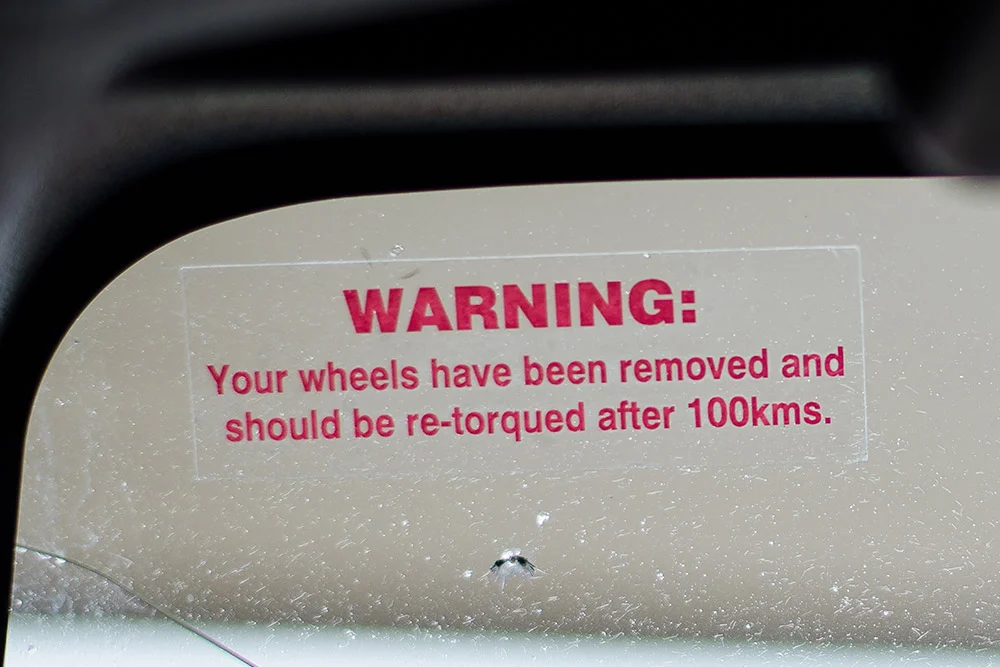

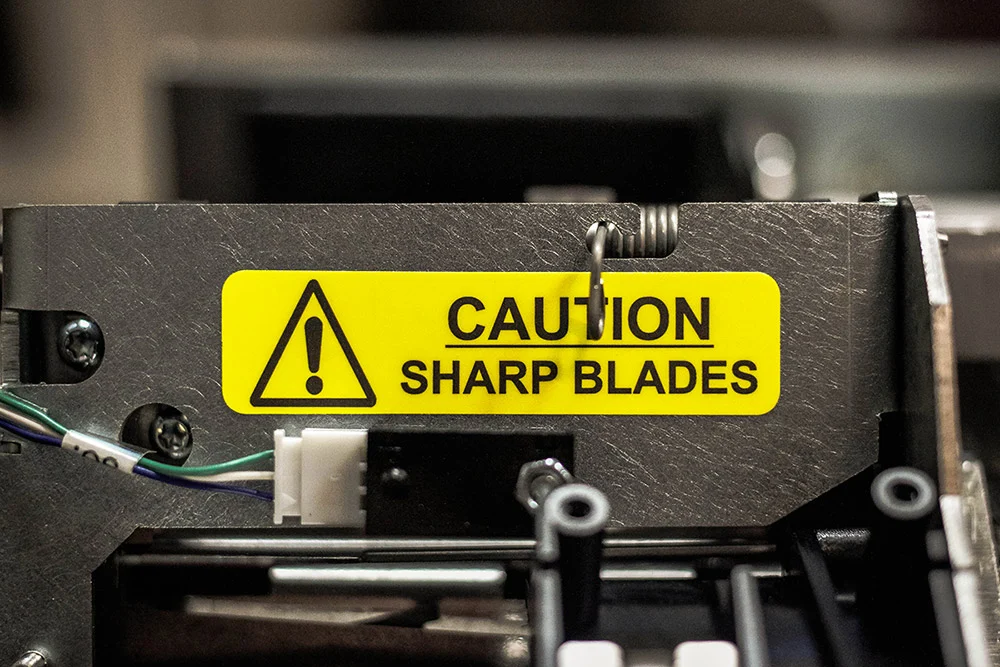

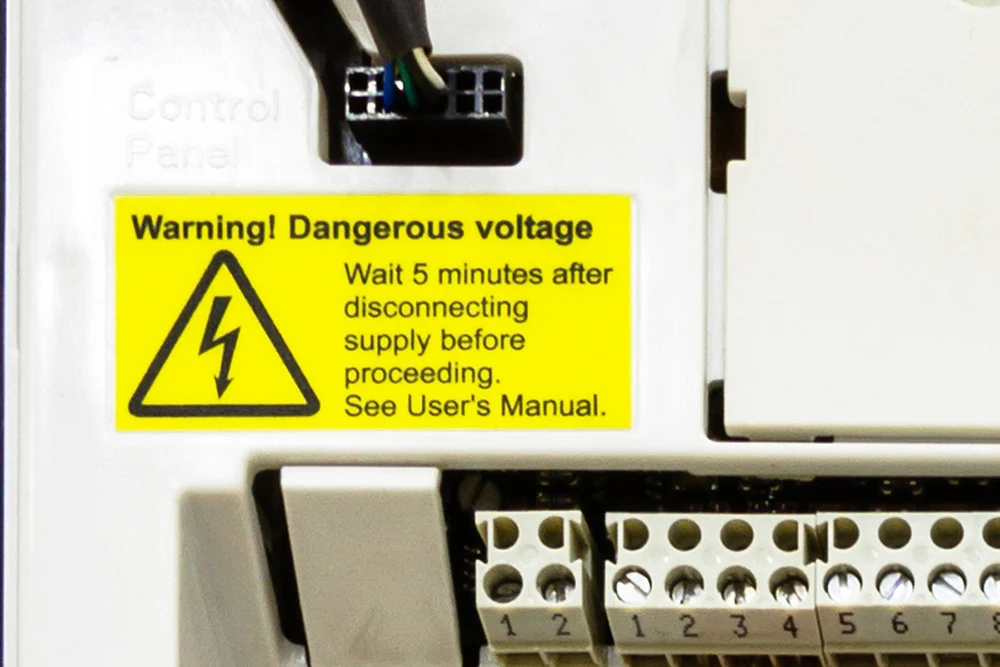

The SMS-830 makes it easy to create all the labels listed below.
Is your application not listed here? Get in touch with us!
(Click on an image to enlarge)

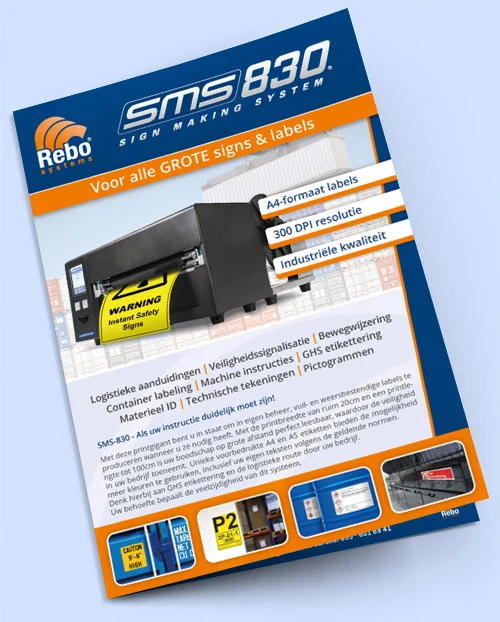

View the SMS-830 brochure
Click to view the brochure
Print speed
Max. 100MM/s
Resolution
300DPI
Print width
Max. 219,5MM
Print length
Max. 1500MM
Specificaties
Printer type
Thermal transfer Direct thermal
Resolution
300DPI
Print speed
Max. 100MM/s
Print length
Max. 1500MM
Print width
Max. 219,5MM
Dimensions
L 221MM H 224MM W 431MM
Weight
11.7 KG
Memory
256 MB Flash and 256 MB SDRAM
Connectivity
USB-A | USB-B | RS-232 | Ethernet
Operation
3.2” Touch screen | 1 Power ON/standby | 1 FEED / PAUSE / CANCEL | 1 Calibrate
Sensors
Reflective (movable) | Transmissive (centrally aligned)
Certification
CE, FCC, cTUVus, UL, CUL, RoHS, WEEE
Input voltage
AC 100~240V, 3.0A, 50~60Hz
Output voltage
DC 24V, 8.33A, 200W
Relative temperature
5°C – 40°C
Relative humidity
20% – 85%, non-condensing
Storage temperature
-40°C – 60°C
Storage humidity
10% - 90%, non-condensing
Geschikte materialen
Tapes
Standard adhesive strength, ideal for indoor and outdoor use.
High adhesive strength, for durable industrial labels for long-term indoor and outdoor use.
Extremely high adhesion, for difficult substrates such as dirt-repellent plastic, slightly greasy substrates, tiles, wood, etc.
High adhesive strength, for nameplates and other durable applications. PT300 matt aluminium, PT500 semi-glossy aluminium and PT700 glossy aluminium.
High adhesive strength, for sealing/security: after the label is removed, the text VOID remains. For long-term industrial indoor use.
Removable tape for temporary markings, a widely used material for location markings.
Repositionable tapes that stick to metal as well as surfaces such as plastic, cardboard and wood. The alternative to magnetic tape.
Reflective tape for indoor and outdoor use.
Fluorescent tape for high visibility.
Highlighting tape for indications that must remain visible in the event of light failure.
Non-adhesive, tear-resistant tags. Available in continuous and die-cut material.
The alternative to resopal. Thickened labels of durable quality for machine and button markings.
Self-laminating wrap-around labels where the print is protected from damage and fading.
Halogen-free shrink tubing especially for cable marking, bundling and protection of cables and wires.
High-quality cable ID tags attachable with tie-wraps, halogen-free and fire-retardant.
Extremely high adhesive strength, for direct application to substrates up to 200°C.
High adhesive strength, for direct application to substrates down to - 25°C.
Printlinten
Resin print ribbon for printing vinyl and polyester tapes and labels.
